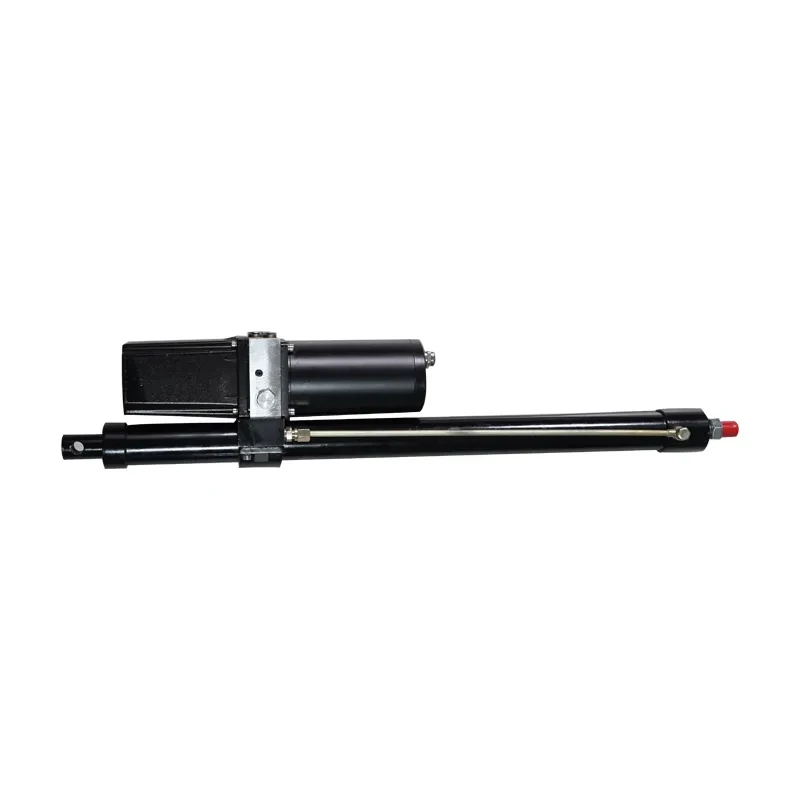

SG50-200,2.5T Powerful DC Motor Hydraulic Linear Actuators

Hydraulic Push Rod – an all-in-one system with hydraulic station,

cylinder, self-locking mechanism, overflow valve, and reversing valve.

Delivering up to 1.8T force at 7-8 mm / 15-18mm per second speed, it offers customizable stroke (50mm - 1000mm)

and voltage options (12V - 48VDC / 220VAC). This high-performance,

low-noise push rod integrates seamlessly, eliminating extra components for easy installation.

Safety features include over-current, overload, and overheat protection.

Customize pressure output, size, and stroke to suit your needs.

Suitable for diverse applications like electric tricycles, industrial robots,

Description：

Model	SG50-200-300W	SG50-200-800W
Input Voltage	220V AC/ 12V/24v/ 48V DC	24V/48V DC
Power	300W	800W
Stroke Length *	200mm	200mm
Jacking Force	2.5T	2.5T
Retracting Force	1.5T	1.5T
Speed	5-6mm/s	10-11mm/s
Operating Temprature	-20буC~+60буC	-20буC~+60буC
Duty Cycle	Long-term continuous use 4 mins/time	Long-term continuous use 6 mins/time
Protection Grade	IPx6
Certification	CE
Warranty	1 year
Weight	8.5kg

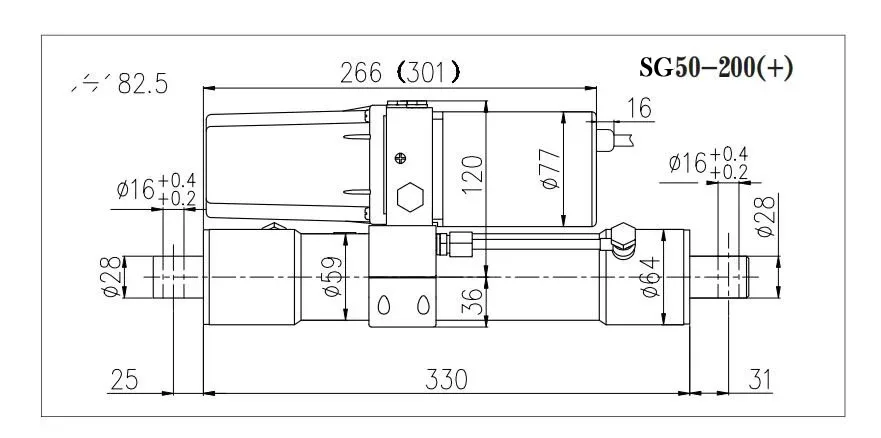

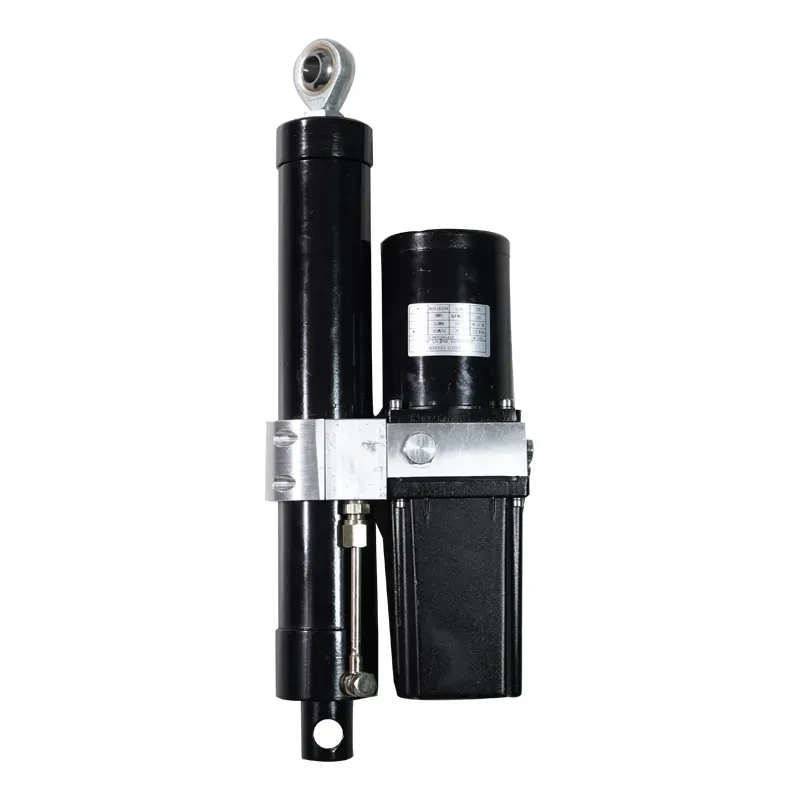

Hydraulic Linear Actuator Details

Oil filler plug: The oil is added or replaced from the plug.

Jacking force adjustment plug: When users unscrew the plug, tighten the nut, the jacking force will increase. When loosening the nut, the force will decrease.

Retracting force adjustment plug: When users unscrew the plug, tighten the nut, the retracting force increases. When loosening the nut, the force decreases.

Safety valve: When the piston rod cannot be withdrawn due to unexpected reasons, loosen the safety valve to enable the ejector rod to recover automatically under the action of load force. Be sure to screw it tightly before the next time users use it.
