4 Spool Directional Control Valve: Applications And Advantages

Directional control valves are essential components in Hydraulic Systems,

allowing for precise control of fluid flow and pressure.

Among the various types available, the 4-spool directional control valve

stands out for its versatility and wide range of applications.

In this article, we will explore the key applications of 4-spool directional control valves,

highlighting their significance in different industries.

Agricultural Machinery:

4-spool directional control valves play a crucial role in agricultural machinery,

such as tractors and combine harvesters. These valves enable farmers to control multiple

hydraulic functions simultaneously, including lift arms, steering, and auxiliary attachments.

The flexibility offered by 4-spool valves enhances the efficiency of

agricultural operations and contributes to increased productivity.

Construction Equipment:

In the construction industry, where heavy machinery is employed for various tasks,

4-spool directional control valves find extensive use.

Excavators, loaders, and cranes benefit from the precise control provided by these valves,

allowing operators to manage multiple hydraulic functions with ease.

This contributes to safer and more efficient construction processes.

Material Handling Systems:

4-spool directional control valves are integral components in material handling systems,

such as conveyor systems and forklifts. These valves facilitate precise control of lifting,

tilting, and gripping mechanisms, optimizing the handling of goods in warehouses and distribution centers.

The reliability of 4-spool valves ensures smooth and accurate material handling operations.

Forestry Equipment:

Forestry equipment, including logging machines and wood processing machinery,

relies on the versatility of 4-spool directional control valves.

These valves enable operators to control the movement of booms, clamps, and cutting mechanisms with precision.

In the forestry industry, where efficiency and safety are paramount,

4-spool valves contribute significantly to optimal equipment performance.

4 spool valves offer several advantages over other types of directional control valves, including:

Precise control:

4 spool valves provide precise control of hydraulic motion, which is important in applications where accuracy is critical.

Flexibility:

4 spool valves are available in a variety of configurations, which allows them to be customized for specific applications.

Durability:

4 spool valves are typically made from durable materials, which makes them suitable for use in harsh environments.

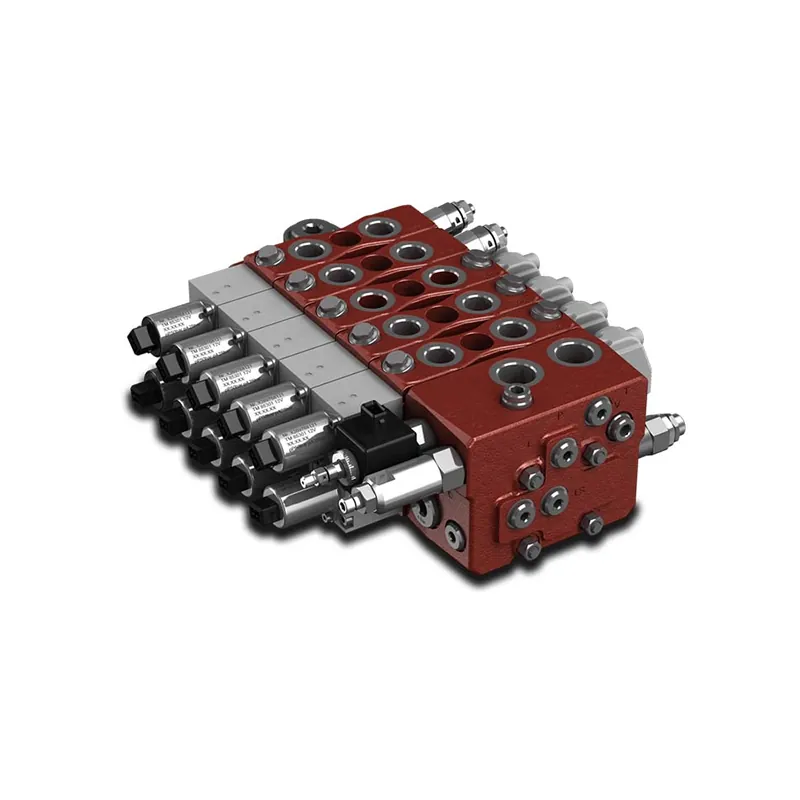

SAIVS:4 Spool Directional Control Valve

Feature

Nominal Flow Rating l/min - (US gpm): up to 120 (32)

Max. Pressure-bar - (psi): 315 (4600)

Number of Sections: 12

Pitch mm (in): 41 (1,61)
